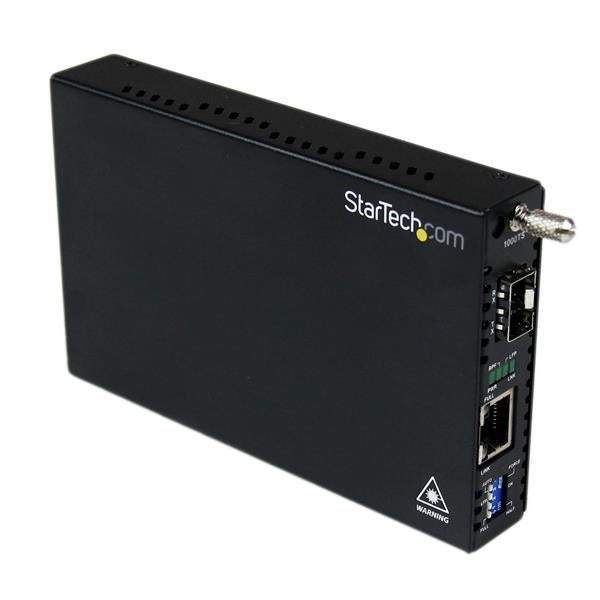

StarTech Gigabit Ethernet Fiber Media Converter with Open SFP Slot (ET91000SFP2)

Item model number: ET91000SFP2

• Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
• Open SFP slot supports MSA-Compliant Single / Multi-Mode Gigabit SFPs at varying distances
• Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
• Supports full or half-duplex operation
• Easy to use and install
• Jumbo Frame support

Specification

Networking
Ethernet interface type	Gigabit Ethernet	Data transfer rate (max)	1250 Mbit/s
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z	Auto MDI/MDI-X	Yes
Duplex system	Full, Half	Converter output interface	1000Base-LX,1000Base-SX
Converter input interface	1000Base-T	Ethernet LAN data rates	1000 Mbit/s

Ports & interfaces
Fiber optic connector	SFP	Fiber ports quantity	1
Ethernet LAN (RJ-45) ports	1	Connectivity technology	Wired

Performance
Mean time between failures (MTBF)	65000 h

Design
Housing material	Steel	Colour of product	Black
LED indicators	Yes	Internal	No

Power
Input current	0.36	Input voltage	100-240

Power
Output current	1 A	Output voltage	12 V
External power adapter	Yes	Power over Ethernet (PoE)	No
Power consumption (typical)	8 W

Packaging content
Manual	Yes

Operational conditions
Operating relative humidity (H-H)	10 - 90%	Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C

Certificates
Certification	FCC	RoHS compliance	Yes

Weight & dimensions
Width	95 mm	Package weight	600 g
Package height	90 mm	Height	20 mm
Package depth	203 mm	Depth	160 mm
Package width	135 mm	Weight	400 g
