StarTech.com

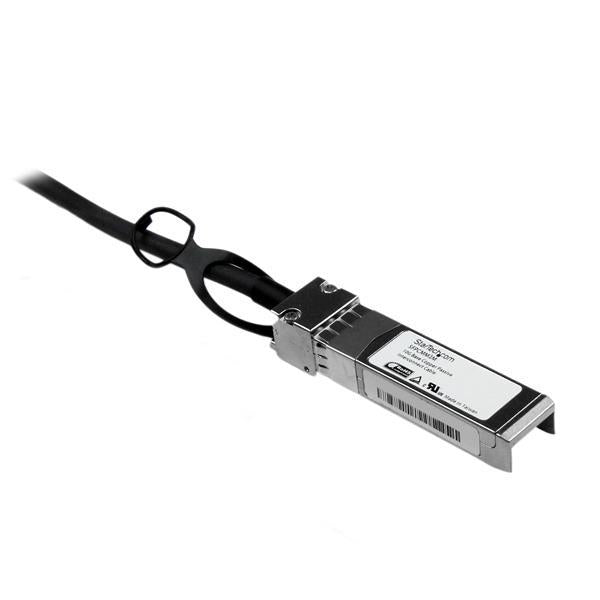

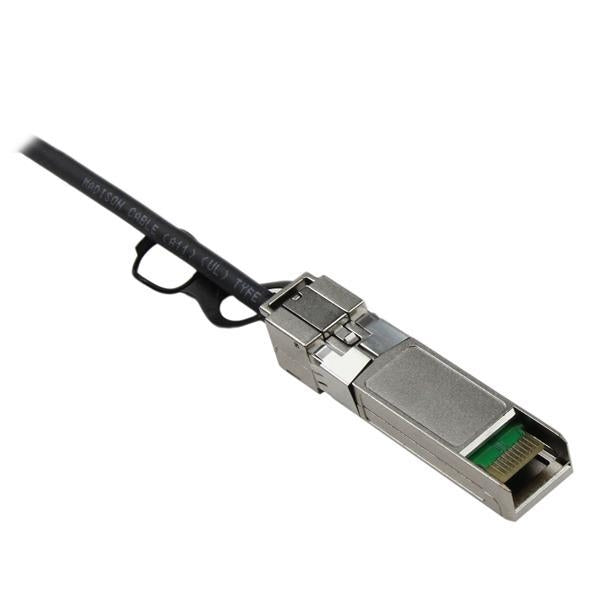

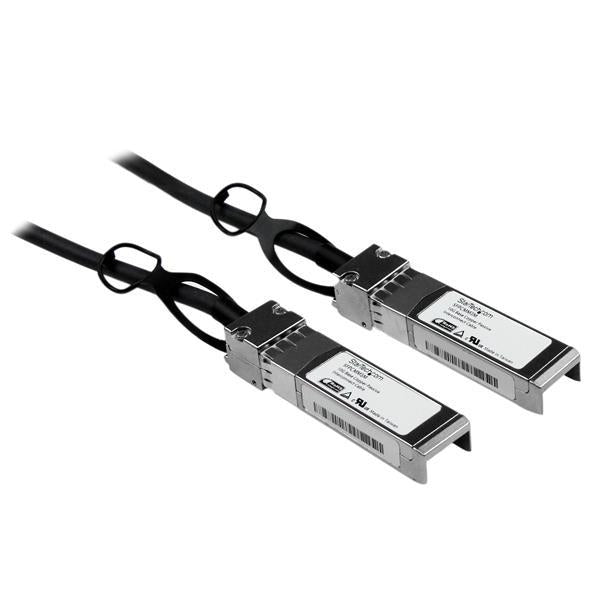

StarTech 3m Cisco Compatible SFP+ 10-Gigabit Ethernet (10GbE) Passive Twinax Direct Attach Cable (SFPCMM3M)
$60.98 CAD
/
Shipping calculated at checkout.
Item model number: SFPCMM3M
- Compatible with Cisco equipment
- Compliant with SFP+ MSA Multi-Source Agreement standards
- Support for 1x, 2x, 4x and 8x Fiber Channel data rates
- Compliant with SFF 8431 connector standards
- 30AWG, 100 Ohm impedance
- Support for multi-gigabit data rates up to 10.5Gbps
- Hot-swappable with fiber optic modules
- Low Power consumption <0.5W
Specification
| Features | |||
|---|---|---|---|
| Jacket material | Polyvinyl chloride (PVC) | Input impedance | 100 Ω |
| Cabling technology | 10/100/1000Base-T(X) | Cable length | 3 m |
| Cable colour | Black | Connector gender | Male/Male |
| RoHS compliance | Yes | Connector 1 | SFP+ |
| Connector 2 | SFP+ | ||
| Operational conditions | |||
|---|---|---|---|
| Operating temperature (T-T) | 0 - 70 °C | Storage temperature (T-T) | -40 - 80 °C |
| Packaging data | |||
|---|---|---|---|
| Quantity per pack | 1 | Package weight | 100 g |
| Package height | 20 mm | Package depth | 230 mm |
| Package width | 207 mm | ||
