StarTech Accessory HDMI Over Single Cat5e 6 Extender with Power Over Cable Retail (ST121HDBTE)
$359.98 CAD
/
Shipping calculated at checkout.
Item model number: ST121HDBTE
- Extend video where power outlets are limited with power over cable that powers both the transmitter and receiver using a single power source at either side of the connection
- Maintains astonishing picture quality up to 115 ft. (35 m) away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling
- Also supports HD video resolutions such as 1920x1200 or 1080p at distances up to 230 ft. (70m)
- Hassle-free, professional installation with included mounting brackets, and full video extension over one CAT5 cable
- 70m (230ft) maximum Cat5 cable distance
- No software/drivers required
- Mounting Hardware Included
- Dolby® TrueHD, DTS-HD MA Audio
Specification
| Technical details | |||
|---|---|---|---|
| Maximum resolution | 4096 x 2160 pixels | Audio output channels | 7.1 channels |
| Cable length | 0.1 m | Daisy chain | No |
| Supported video modes | 720p,1080p,2160p | RoHS compliance | Yes |
| Material | Aluminium | Audio support | Yes |
| Maximum transfer distance | 70 m | Colour of product | Black |
| Cable types supported | Cat5e,Cat6 | Audio system | Multichannel |
| Type | AV transmitter & receiver | Certification | CE, FC |
| Ports & interfaces | |||
|---|---|---|---|
| RJ-45 output ports | 1 | Number of HDMI outputs | 1 |
| HDMI in | 1 | DC-in jack | Yes |
| RJ-45 input ports | 1 | ||
| Indication | |||
|---|---|---|---|
| LED indicators | Power | ||
| Operational conditions | |||
|---|---|---|---|
| Operating relative humidity (H-H) | 0 - 80% | Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C | ||
| Power | |||
|---|---|---|---|
| Plug type | Type M | Output current | 1.5 A |
| Input current | 0.5 | Operating voltage | 12 V |
| AC input voltage | 110-240 | ||
| Packaging data | |||
|---|---|---|---|
| Package weight | 700 g | Package dimensions (WxDxH) | 153 x 235 x 65 mm |
| Packaging content | |||
|---|---|---|---|

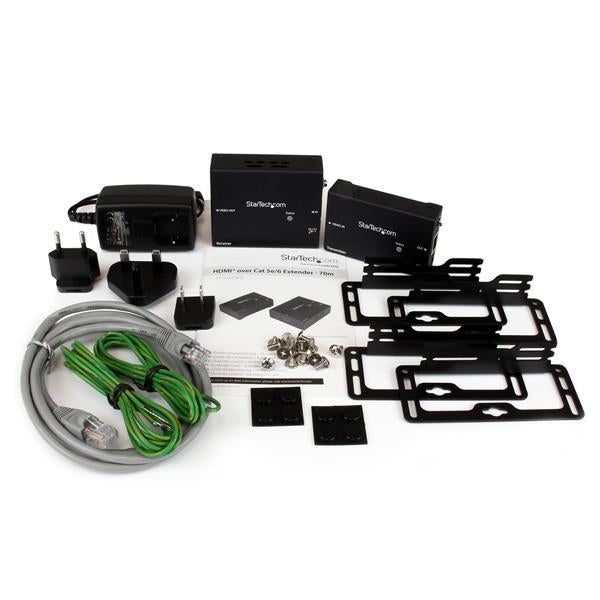

| Manual | Yes | Mounting brackets included | Yes |
| AC adapter included | Yes | Cables included | LAN (RJ-45) |
