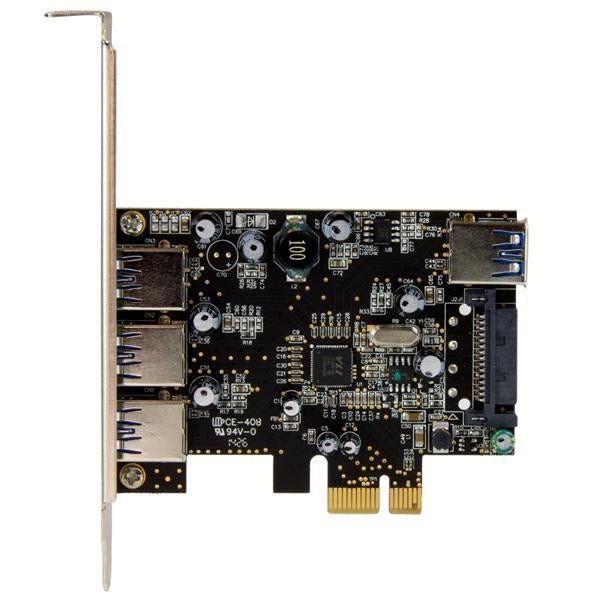

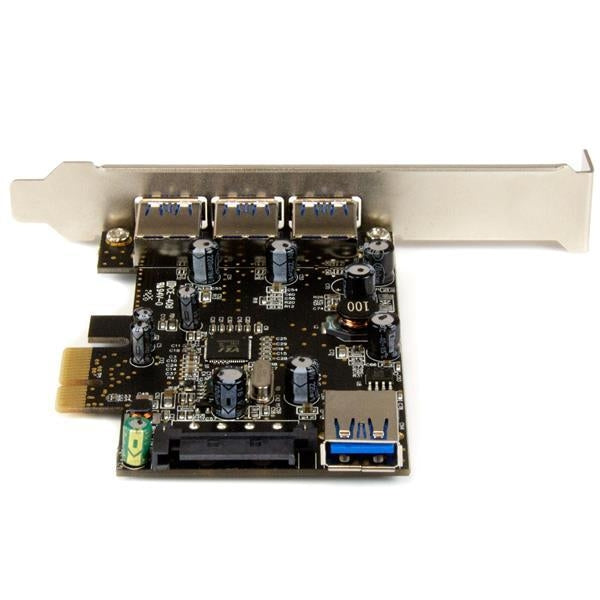

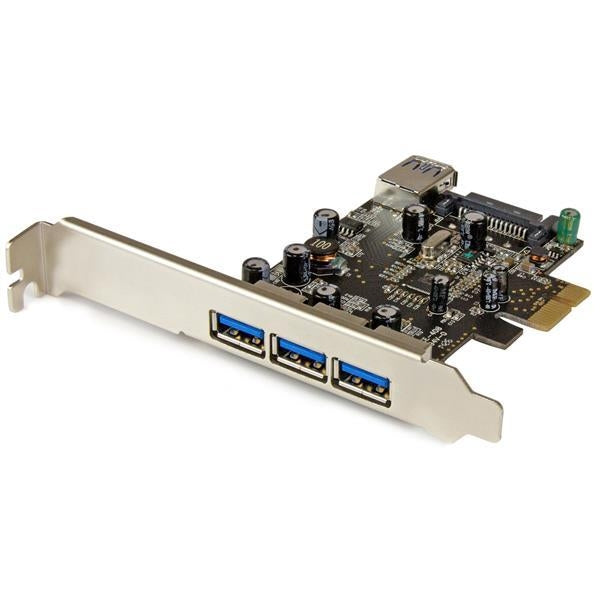

StarTech I/O Cards 4Port PCI Express USB3.0 Card Retail (PEXUSB3S42)
$49.98 CAD
/
Shipping calculated at checkout.
Item model number: PEXUSB3S42

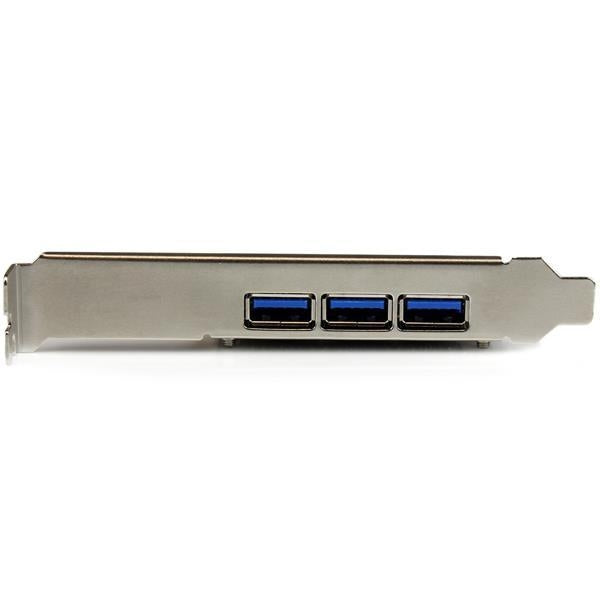

- Expands your computer connectivity with four extra USB 3.0 ports (3 external, 1 internal)
- Easy to install with native OS support in Windows 8.1, 8, 7, and Linux kernel 2.6.31 or later
- Fits standard or small form-factor computers, low-profile bracket included
- Data transfer rates up to 5 Gbps plus UASP support
- Backward compatible with USB 2.0 and 1.x devices
- Built-in optional SATA power connector provides up to 900mA per USB port
- PCIe x1 interface, compliant with PCI Express 2.0 specifications
Specification
| Ports & interfaces | |||
|---|---|---|---|
| PCI version | 2.0 | USB 3.0 (3.1 Gen 1) Type-A ports quantity | 4 |
| Output interface | USB 3.0 | Internal | Yes |
| PCI Card form factor | Full-height (low-profile) | Host interface | PCIe |
| Performance | |||
|---|---|---|---|
| Data transfer rate (max) | 5 Gbit/s | Hot-swap | Yes |
| Maximum cable length | 3 m | UASP support | Yes |
| Chipset | 2 x Renesas / NEC - µPD720202 | ||
| Design | |||
|---|---|---|---|
| RoHS compliance | Yes | Colour of product | Black, Stainless steel |
| Certification | CE, FCC | ||
| System requirements | |||
|---|---|---|---|
| Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 | ||
| System requirements | |||
|---|---|---|---|
| Linux operating systems supported | Yes | Server operating systems supported | Windows Server 2008 R2,Windows Server 2012 |
| Operational conditions | |||
|---|---|---|---|
| Operating relative humidity (H-H) | 20 - 80% | Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C | ||
| Weight & dimensions | |||
|---|---|---|---|
| Width | 15 mm | Package weight | 200 g |
| Package height | 30 mm | Height | 120 mm |
| Package depth | 170 mm | Depth | 167 mm |
| Package width | 142 mm | Weight | 90 g |
| Packaging content | |||
|---|---|---|---|

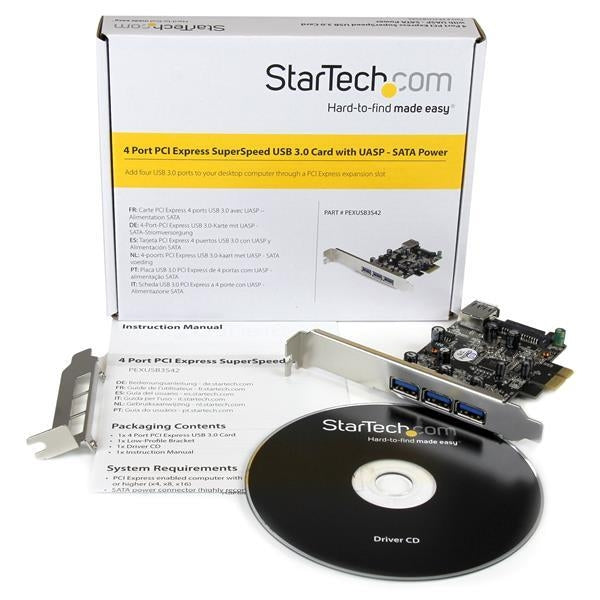

| Manual | Yes | Mounting brackets included | Yes |
| Drivers included | Yes | ||
